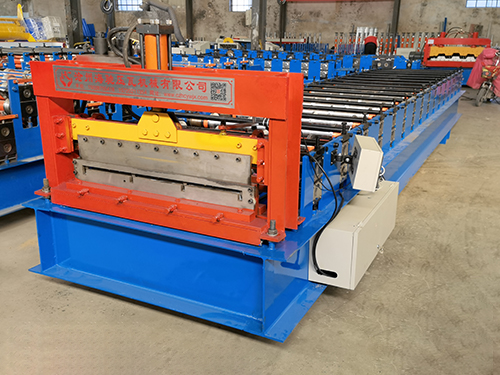

831 ceiling tile press

831 technical parameters of ceiling tile pressing machine:

1. Total length of equipment: 12m width: 1.4m height: 1.5m

2. Motor power: 7.5kw

3. Production speed: 12m / min

4. Profiled shaft diameter: 70mm solid shaft

5. Transmission mode: 1-inch chain transmission

6. Profiled wheel: 45# steel finishing, with hard chrome plating on the surface

7. Forming shaft of the whole machine: a total of 26 forming passes

8. Equipment underframe: 350 H steel

9. Shear knife: made of Cr12 Steel, processed and quenched by numerical control, and the shear head is welded by medium plate

10. The vertical plate of the equipment is 14mm thick

11. The thickness of the pressing plate is 0.25-0.6mm

12. The full-automatic computer control system is used to realize the fixed length cutting. The 11kw frequency converter is used to realize the automatic production of the whole machine, and the batch, workpiece length, quantity, etc. can be set. The frequency converter has high fineness and error of ± 2mm

13, with 3KW hydraulic pump station

14, weight: 5.5 tons
