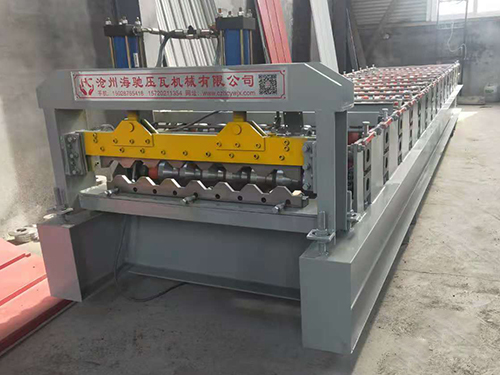

750 tile press for horizontal hanging plate

The profiled plate rolled by 750 horizontal hanging tile press is not only dignified and elegant, but also beautiful and novel, with flat appearance, uniform ripple, good utilization rate and good production automation

750 horizontal hanging tile pressing machine products are used for roof production of various industrial plants, warehouses, etc., and have the advantages of high wave crest, lap installation and other characteristics. The profiled plate produced by 750 horizontal hanging tile pressing machine solves the roof leakage problem of conventional series of profiled plates, and 750 color tile machine can be used to make beamless arched roof with arch springing machine

750 horizontal hanging tile press includes: complete machine, PLC computer control system, shearing system and hydraulic system. The products produced have flat and beautiful appearance and uniform paint lines. They are widely used in industrial and civil buildings, such as factory buildings, warehouses, locomotive hangars, aircraft hangars, gymnasiums, exhibition halls, cinemas and other rooms and walls

750 debugging of horizontal hanging plate tile press:

1. First measure the height of the front and rear four corners of the color steel tile press from the gantry to the upper end of the shaft, find a line to straighten, check whether the lower shaft is in a straight line, and adjust the left and right sides of the lower shaft to be horizontal

2. Tighten the lock nuts on both sides, pull a straight line in front of and behind the middle wheel, and adjust the gap between the upper and lower shafts, then the machine can be adjusted along the straight line

3. Debugging method of pressing plate deviation of tile press equipment, such as running the plate to the right and padding the left corner (feeding rack), Or fall to the right bottom level (the axis deviates and falls to the bottom level of the axis, and the upper axis falls with the bottom axis.

750 horizontal hanging plate tile press main technical parameters:

1, pressing plate thickness: 0.3-0.8mm

2, molding machine speed: 8m/min

3, molding machine expansion width: 1000mm

4, width: 750mm deviation ± 1/100

5, wave height: 35mm

6, molding frame: 13

7. Thickness of medium plate 12mm

8. Overall dimension: 7500mm × 1300mm × 1200mm

9, main motor power: 4kw

10, roll material: 45, hard chrome plated, diameter φ 180mm

11. Spindle material: 45 ＃, solid shaft, diameter φ 70mm

12. Reducer: 4 ＃ needle cycloid reducer

13. Sprocket chain: 1 inch
